The excavation-based approach that addresses groundwater and hydrostatic pressure at the foundation exterior, not after it has already come inside.
Exterior foundation waterproofing is the only method that directly interrupts the path water travels from saturated soil to basement interior, and that interruption is made permanent through a combination of membrane application, drainage board installation, and footing pipe placement. The excavation required to accomplish this is substantial, involving the removal of soil from the surface to the footing elevation along the affected foundation sections. For most Elrod homes, this means a trench four to eight feet deep depending on foundation type and depth, wide enough to allow membrane application and drainage board placement by the installation crew.

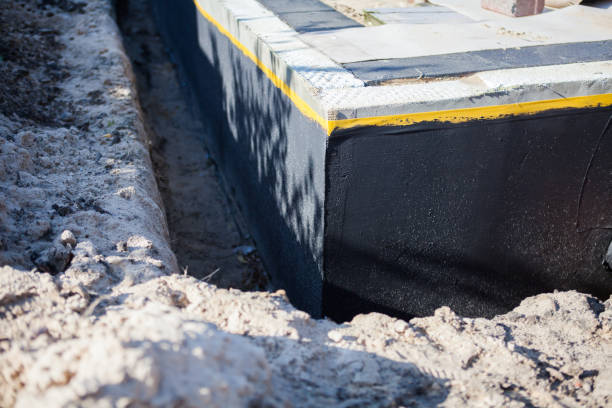

Once the foundation wall is exposed, any existing deteriorated coatings, efflorescence, or cracked parging are removed to create a clean, stable substrate. Cracks in the foundation wall itself are filled and surface-prepped before any waterproofing material is applied. The primary waterproofing layer for most Elrod applications is a rubberized asphalt membrane applied by roller or spray to the cleaned wall surface. This material bonds directly to masonry or poured concrete, bridging hairline cracks and micro-fissures that would otherwise serve as water entry pathways. The membrane is applied in multiple passes to achieve a specified minimum thickness, and the material's flexibility accommodates the minor seasonal movement that occurs in Elrod, AL soil conditions without cracking or delaminating.
Drainage board, sometimes called dimple board or dimple mat, is installed over the cured membrane to create a capillary break between the waterproofed wall surface and the surrounding soil. This profiled plastic sheet holds the soil away from the membrane surface and channels any water that migrates through the soil downward to the footing drain rather than allowing it to accumulate against the wall. The dimple profile creates a continuous air gap that eliminates the direct hydraulic contact between saturated soil and the foundation surface. At the base of the excavation, a perforated footing drain pipe is laid in a gravel bed alongside the footing, collects the water directed downward by the drainage board, and conveys it to daylight or to a sump pit inside the structure.
Seasonal timing for exterior waterproofing in Elrod is often a question homeowners raise during the assessment. While spring and fall are typically optimal in Elrod, AL climates for this type of work, late summer installations are also common and effective when the excavation conditions and membrane cure windows align. We monitor extended forecasts when scheduling exterior projects and build adequate cure time into the project timeline before backfill begins. Winter work is evaluated on a case-by-case basis depending on frost depth, ground conditions, and the urgency of the moisture problem. We are transparent about seasonal limitations and advise homeowners accurately rather than scheduling work that conditions do not support.
Exterior waterproofing represents a significant investment compared to interior drainage solutions, and homeowners in Elrod reasonably ask whether the cost is justified for their specific situation. The honest answer depends on the source and severity of moisture entry, the foundation type, and the long-term goals for the space. In cases where water is entering through the wall itself due to hydrostatic pressure or deteriorated original waterproofing, exterior treatment addresses the cause rather than managing the symptom. Interior drainage systems are valuable tools in many situations, but they do not treat the wall surface or reduce hydrostatic pressure against the foundation. For homes in Elrod where the foundation is sound but the original exterior waterproofing has aged out, a re-application of exterior membrane can extend the foundation's protection for decades. We provide assessments that document the actual conditions and recommend the approach best suited to those conditions, not the most expensive option available.
Quality you can see in the materials and the workmanship.
Excavation to footing level is non-negotiable for effective exterior waterproofing. We do not offer partial-depth options that leave untreated wall area below grade.
The membrane we specify is rated for continuous soil contact, remains flexible across Elrod, AL temperature ranges, and bridges existing micro-fissures in the foundation surface.
We stand behind the work we perform in Elrod with written documentation of what is covered, for how long, and how to make a claim if needed.
Complete exterior foundation protection from excavation through backfill.
Complete excavation, membrane application, drainage board installation, and footing pipe for the full foundation perimeter. The comprehensive solution for persistent moisture intrusion in Elrod homes.
Learn moreFor Elrod homes where moisture intrusion is isolated to specific wall sections, targeted exterior treatment of affected areas provides effective protection at lower cost than full perimeter work.
Get an assessmentSurface preparation, crack repair, and re-application of current-generation rubberized membrane over aged original coatings restores exterior protection at a fraction of total foundation replacement costs.
Schedule a reviewInstalling or replacing dimple board and footing drain pipe in conjunction with membrane work ensures water shed by the drainage plane reaches an appropriate outlet rather than pooling near the foundation base.
Learn about drainageBasement window wells in Elrod homes are a common point of exterior water entry. Proper well drainage, liner installation, and connection to the perimeter footing pipe prevents well overflow from reaching window openings.
Address window wellsProper grading at the completion of backfill is the last line of exterior defense. We verify slope direction and distance from the foundation before leaving every project site.
See full scopeA clear, documented process with no hidden steps.
Site evaluation covers soil type, existing drainage, foundation material, and any evidence of prior waterproofing.
Full excavation to footing depth along affected wall sections exposes the foundation surface for prep and membrane work. All excavated material is staged for controlled backfill.
Each phase is inspected before the next begins to ensure material performance is not compromised by sequencing shortcuts.
Backfill is compacted in lifts to prevent future settlement and voids. Final grade is set to direct surface water away from the foundation at the correct slope.
Real results from real homeowners who chose the permanent solution.
After 12 years of dealing with wall seepage in our older home in Elrod, the exterior waterproofing finally eliminated it. The technician explained exactly why the interior approaches were only managing the water rather than stopping it, and the exterior project confirmed that assessment.
I appreciated that they were honest about what exterior waterproofing can and cannot solve. They did not oversell it as a universal fix but explained specifically why it was the right approach for my particular moisture pattern. That kind of honesty builds trust.
Fair pricing for the scope of work involved. The assessment was detailed and the proposal broke down every line item. No surprises during the project and the crew left the site cleaner than they found it.
No vague promises, just accurate information about what exterior waterproofing delivers.
Exterior waterproofing excavation is the most disruptive type of foundation work performed on a residential property. The extent of disruption depends on what is adjacent to the affected wall sections. Established shrubs, trees, or hardscaping features within the excavation zone will likely need to be temporarily removed or may be permanently affected. We identify and document these impacts during the assessment phase so homeowners can plan for restoration. Lawns adjacent to the excavation typically recover within one to two growing seasons after proper backfill and grading. We do not minimize this aspect of the work, because setting accurate expectations upfront is essential for homeowner satisfaction with the project.
The comparison is not simply about which approach is better in the abstract; it is about which approach addresses the specific moisture entry mechanism present in your Elrod home. Wall seepage that stains the middle of the block, migrates through cracks, or appears after saturation events is the profile that exterior waterproofing resolves most definitively. Floor-joint entry or seepage that follows the perimeter at the floor level responds better to interior channel systems. When both conditions are present, a combined approach is sometimes the most complete solution.
{Quality exterior waterproofing using modern rubberized membrane systems can protect a foundation for 20 to 30 or more years when properly installed on a well-prepared surface. The original factory-applied bituminous coatings used on homes built through the 1980s typically had a design life of 10 to 15 years under favorable soil conditions. Modern rubberized membrane materials are substantially more durable, maintain flexibility under soil movement and temperature cycling, and retain adhesion over extended periods. The key variable in longevity is surface preparation quality and membrane thickness applied; underprepared substrates and thin single-pass applications consistently underperform.|Longevity depends on the membrane product specified, surface prep quality, and subsequent drainage board and footing pipe function. When drainage board is properly installed and the footing pipe remains clear and functional, the membrane experiences minimal hydrostatic load because water is redirected before it can accumulate against the wall surface. Regular inspection of the exterior grade around the foundation and the footing drain outlet ensures the drainage system continues to function as designed over the years.}
For homeowners with active moisture problems in winter, we evaluate whether interim measures can stabilize the situation until conditions support exterior work. In some cases, temporary interior drainage can reduce immediate water damage risk while the exterior project is planned for spring. We are transparent about what winter conditions allow and advise accordingly rather than scheduling work that conditions do not support.
Landscaping impact is real but temporary for most items. Lawn areas typically recover within one to two growing seasons after backfill and reseeding. Established shrubs that are carefully relocated before excavation can be successfully replanted in the same beds after completion. Large mature trees within the excavation zone require a separate arborist evaluation to determine whether root disruption at excavation depth would pose a risk to the tree's health. We document these considerations clearly during the assessment.
The return on exterior waterproofing investment in Elrod comes from several directions: prevention of ongoing moisture damage to structural elements, framing, and finishes; reduction or elimination of mold risk that creates both health and remediation costs; increased usable floor area if the basement was previously unusable due to moisture; and improved marketability and buyer confidence at the time of sale. For older homes where the original factory waterproofing has failed, the cost of continued water damage over time typically exceeds the cost of exterior treatment within several years.
A site assessment costs you nothing and answers the question definitively. Call JCB Waterproofing and Construction to schedule.
Call +1-866-476-1348 for Assessment
